Product Advantages
Perfluorinated Material, Extreme Temperature and Corrosion Resistance

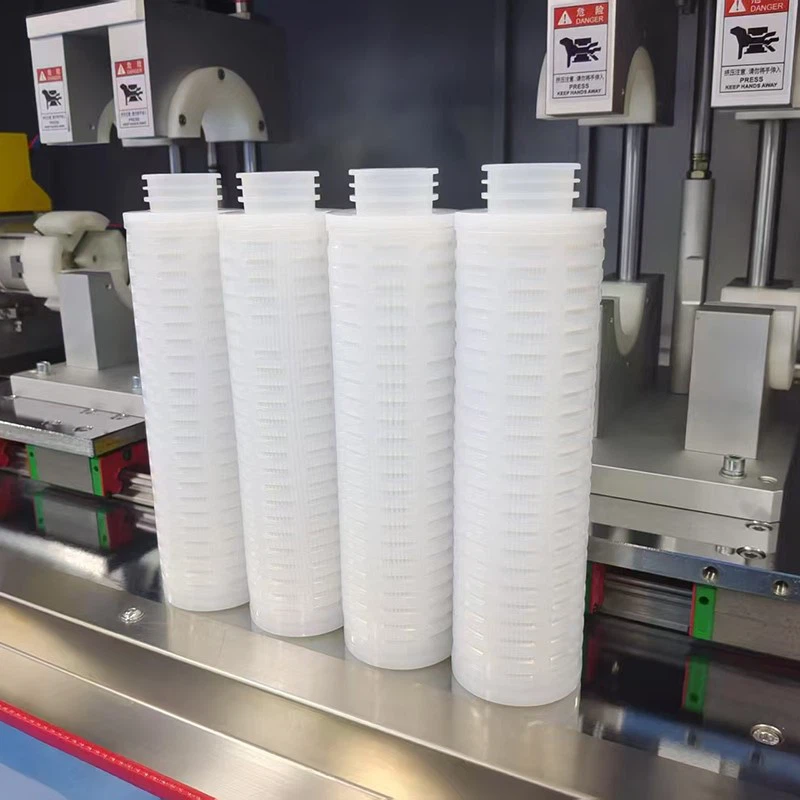

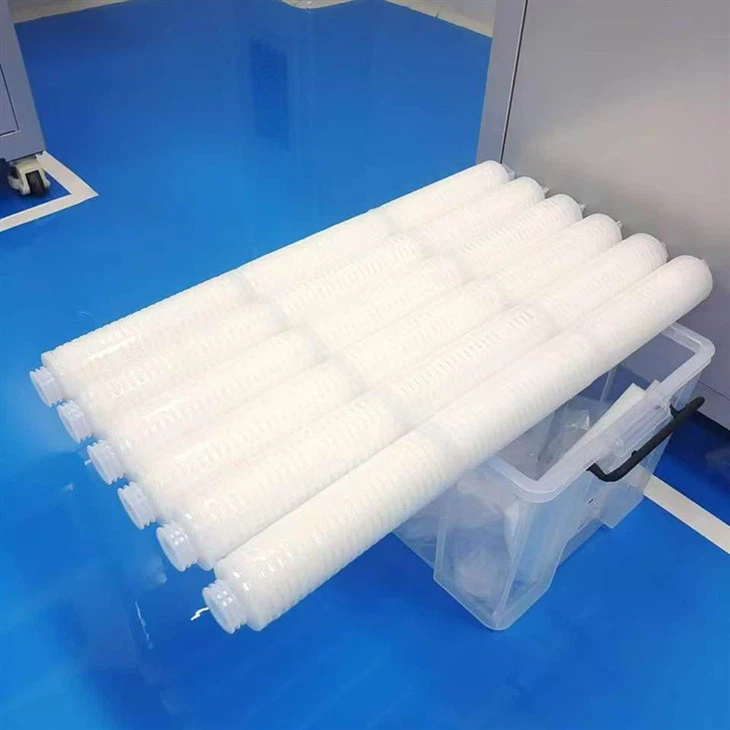

The filter element is made entirely of high-purity PTFE filter media, combined with a PFA support layer, sleeve, end caps, center rod, and connectors. This perfluorinated material combination gives the product exceptional chemical inertness. It can withstand almost all highly corrosive acids, alkalis, organic chemical reagents, and gases, while also possessing excellent high-temperature resistance-the maximum operating temperature can reach 190℃ at 1.2 bar pressure. It is stably adapted to high-temperature chemical reagent filtration scenarios, with no impurities leaching out, ensuring the purity of the filter media.
Precise parameters, stable filtration performance
- Structural specifications: Outer diameter 67.0mm, inner diameter 32.0mm, effective filtration area ≥0.74m², optimized transverse flow structure design improves membrane utilization, resulting in higher flow rates and lower pressure drop;
- Selectable precision: Covers multiple precision levels including 0.05μm, 0.1μm, 0.2μm, 0.45μm, and 1.0μm, with specific bubble point and diffusion flow standards for each precision (e.g., 0.05μm precision bubble point ≥2.4bar, 0.2μm precision diffusion flow ≥35ml/min@0.8bar), accurately trapping impurities of different particle sizes;
- Pressure resistance: Maximum forward pressure resistance of 4.3bar and reverse pressure resistance of 3.0bar at 25℃, recommended replacement pressure differential of 2.4bar@25℃, robust structure, no risk of leakage.
High cleanliness standards, no secondary pollution
Production, testing, and packaging are all completed in a cleanroom using a hot-melt welding process that contains no adhesives, eliminating contamination at the source. Metal leaching is <25ug/device, particle leakage is <15 particles/10ml (>0.2μm@5L/min deionized water), and TOC recovery after rinsing is <10ppb (120L@10L/min). 100% integrity testing is performed before leaving the factory, and long-term leaching is extremely low, meeting high cleanliness filtration requirements.
- High flow rate and low pressure drop: Special folded structure design increases the effective contact area of the membrane, optimizes the fluid flow path, and improves filtration efficiency while reducing operating pressure drop;
- Long service life: Reasonable structural layout reduces local clogging, and combined with corrosion-resistant and temperature-resistant high-quality materials, it extends the filter element replacement cycle and reduces operating costs;
- Extremely high reliability: The entire process follows the ISO9001 quality system, with strict control from raw material procurement to product storage, ensuring consistent, stable, and reliable performance for every batch of products.
📞 We offer custom filter services. Contact us to get the filter solution best suited to your needs.
Leading filter manufacturer
Hanzhikang's core advantage lies in its strong customization capabilities and all-scenario adaptability. Leveraging a professional technical team and years of industry experience, it can tailor-make exclusive filtration systems based on the specific needs of different industries, including production processes, filter media characteristics, and personalized requirements such as precision, flow rate, and pressure. This encompasses non-standard equipment customization and OEM cooperation, providing full-process support from material selection and structural optimization to installation and commissioning, precisely matching the customer's production process.
The company boasts a rich product portfolio, including high-flow filters, perfluorinated filter elements, and more, covering specifications from pilot-scale to large-scale production, suitable for multiple fields such as biopharmaceuticals, electronics, and chemicals. Coupled with 24/7 delivery response and a rigorous quality control system, it ensures both high cost-effectiveness and stable durability, while also rapidly responding to customer customization needs, making it a reliable partner in the industrial filtration field.
FAQ
What are the core advantages of your products compared to ordinary corrosion-resistant filter cartridges?
Using high-purity PFA raw materials, resulting in superior chemical inertness; advanced folding technology increases the effective filtration area by 30%-50%, resulting in high flow rate and low pressure drop; combined with a reinforced support frame and precision sealing design, it offers strong leak-proof performance and a longer service life.
What customization services do you support? What is the minimum customization quantity?
Customizable filtration accuracy, size, structure, and material grade (adaptable to extreme operating conditions); supports small-batch trial production (flexible minimum customization quantity) and large-scale batch customization, with full technical solution support provided.
Are there any minimum order quantities for wholesale? What are the advantages of bulk purchasing?
Flexible minimum order quantities cater to the purchasing needs of large, medium, and small enterprises; bulk purchases enjoy tiered pricing, priority production scheduling, shorter lead times, and extended warranty services.
