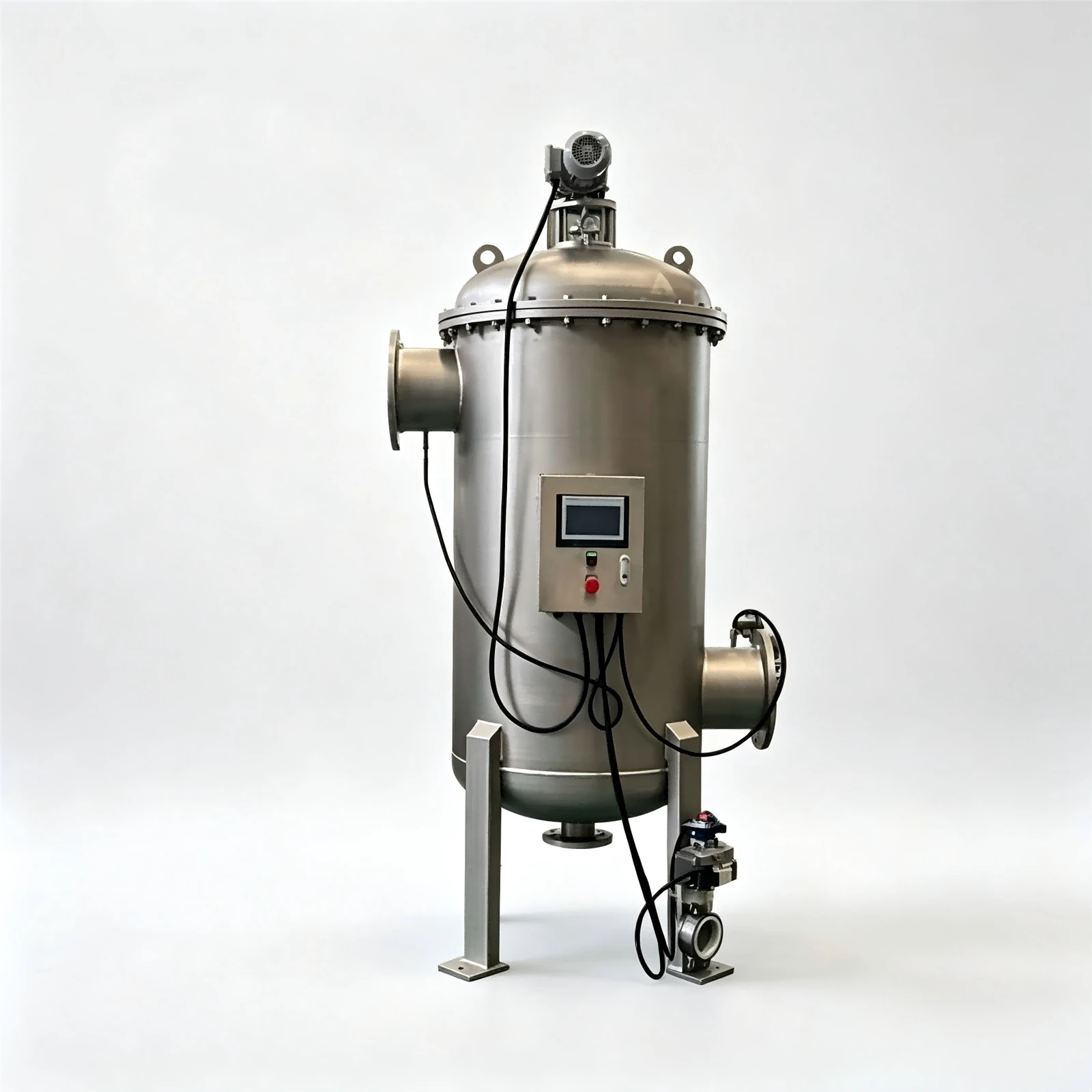

Self Cleaning Filter For Water Treatment

Self Cleaning Filter For Water Treatment is an automatic self-cleaning filtration equipment specially designed for water treatment systems. It continuously removes suspended solids, rust, silt and algae from water. Triggered by differential pressure or time setting, it automatically cleans the filter screen without shutting down the main pipeline, featuring low water consumption, maintenance-free and long service life. Widely used in circulating water, RO pre-treatment, municipal water, irrigation and wastewater recycling.

Operating Principle

Raw water enters the unit through the inlet and flows through the filter element/screen; sediment, algae, rust, suspended solids, and colloids are trapped on the inner surface of the screen.

As the differential pressure across the screen rises and reaches a preset threshold (or a timed trigger occurs), the unit initiates its self-cleaning cycle.

A motor drives the rotation of the suction scanning arm while the discharge valve opens; utilizing the internal filtered water to create a high-speed, negative-pressure flow, the system back-flushes debris from the screen surface.

Impurities are rapidly expelled through the discharge outlet along with the wastewater; the main water supply remains uninterrupted throughout the process, cleaning is completed in just a few seconds, and the unit automatically resets to filtration mode upon completion.

Core Structural Components

Cylinder Body: Corrosion-resistant carbon steel or 304/316 stainless steel (water-corrosion resistant)
Filter Screen: Wedge wire, woven mesh, or perforated plate; filtration precision selectable from 5 to 3000 μm
Drive Mechanism: Geared motor or hydraulically driven suction arm
Control System: Differential pressure sensor, PLC/control cabinet, and timing module
Discharge Assembly: Electric or pneumatic discharge valve and discharge piping

Mainstream Applications for Water Treatment

Industrial circulating water: Central air conditioning cooling water, circulating water for steel mills and power plants, and equipment cooling systems (removal of silt and algae);
Municipal water treatment: Pre-treatment for waterworks, reclaimed water reuse, and tertiary filtration in wastewater treatment;
Seawater/brackish water desalination: Pre-filtration (safety filtration) upstream of reverse osmosis (RO) membranes to protect membrane elements;
Agricultural irrigation: Pre-filtration for greenhouse drip and sprinkler irrigation systems to prevent emitter clogging;
Pure water/purified water processes: Swimming pool water circulation, landscape water purification, and process water supply for the chemical industry;

FAQ

What is a self-cleaning filter for water treatment used for?

It's an automatic online filtration device to intercept silt, rust, algae, suspended solids in water. Mainly as pre-filtration for RO systems, industrial circulating water, agricultural irrigation, municipal reclaimed water and wastewater treatment, to protect downstream pumps, membranes and nozzles from clogging.

What filtration precision can this self-cleaning filter offer?

Standard precision ranges from 5μm to 3000μm. 5–50μm for RO pre-treatment; 50–200μm for cooling circulating water; 200–3000μm for agricultural irrigation and raw water coarse filtration. Custom mesh sizes are acceptable.
