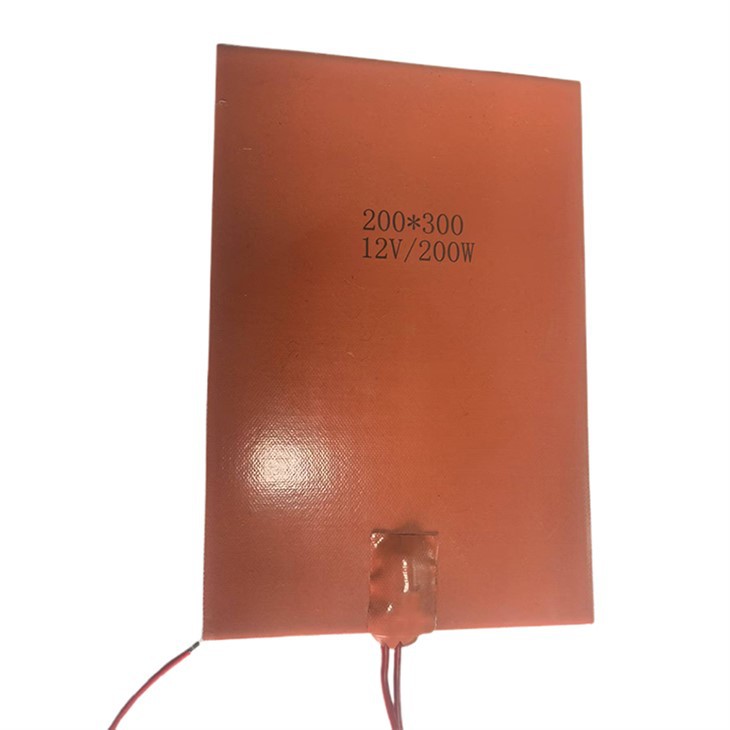

If you have ever shopped for a silicone heater pad, you have probably come across the term "watt density" more than a few times. But what does it actually mean? And more importantly, how does it affect how well your heater performs?
The truth is, watt density is one of those specs that gets overlooked way too often. People focus on total wattage, thinking that more watts equals more heat. But the real story is a bit more nuanced. It is not just about how much power you are pushing-it is about where that power is concentrated. Get watt density wrong, and your heater might underperform, burn out too soon, or even become a safety hazard. Get it right, and you will enjoy reliable, efficient performance for years.
Let us break down what watt density really is and how it shapes just about everything-from how fast your heater warms up to how long it lasts.
What Is Watt Density, Exactly?
In simple terms, watt density is the amount of power a heater produces per unit of surface area. Think of it as the "concentration" of heat. It is typically expressed in watts per square inch (W/in²) or watts per square centimeter (W/cm²).
Here is a simple formula to keep in mind:
Watt Density = Total Heater Wattage ÷ Heater Surface Area
Let me give you an example. Imagine you have two silicone heater pads, both rated at 100 watts. One measures 10 in², and the other measures 20 in². The smaller one would have a watt density of 10 W/in², while the larger one would only be 5 W/in² - half as concentrated. Both put out the same total heat, but that heat is spread out very differently.
That difference in concentration changes everything about how the heater behaves.
How Watt Density Shapes Performance
Temperature Uniformity
One of the biggest selling points of silicone heater pads is their ability to provide even, uniform heat. But that uniformity does not happen automatically-it is largely determined by the resistor trace pattern inside the pad. Well-designed pads use computer-optimized patterns to distribute heat evenly and prevent hot spots.
So where does watt density fit in? Even with an excellent trace pattern, if your watt density is too high for the application, localized hot spots can still develop around the resistance element. Those hot spots accelerate material fatigue and cause uneven temperatures across the heating surface.
On the flip side, many manufacturers achieve a solid temperature uniformity of around ±5°C (or about ±9°F) when watt density is properly matched to the application. That is the kind of precision you want in any process where predictable heating matters.
Heat-Up and Cool-Down Speed
Watt density has a direct impact on how fast your heater responds. Higher watt density concentrates more power into a smaller footprint, which generally means quicker heat-up times. But here is the catch: that speed comes with trade-offs.
Industry guidelines typically sort silicone rubber heaters into three categories when it comes to heat-up rates:
- Low heat-up: Around 2.5 W/in² - ideal for gentle warming
- Average heat-up: Around 5 W/in² - a solid all-around performer
- High heat-up: 7.5 W/in² and above - for fast, high-temperature applications
Omega, a well-known name in the industry, puts it this way: gentle warming calls for 2.5 W/in², an all-purpose unit runs at 5 W/in², and rapid warm-up needs 10 W/in²-though temperature must be carefully controlled to avoid exceeding the safe limit of around 450°F.
Energy Efficiency
Higher watt density does not automatically mean higher efficiency. In fact, a well-matched lower watt density often yields better long-term results. Why? Because when you push more power through a smaller area, you generate more waste heat that has to go somewhere. Some of that heat ends up staying in the heater itself rather than transferring to the target surface.
Silicone heaters actually excel at energy efficiency precisely because they are thin and can be bonded directly to the surface you need to heat. That direct contact minimizes thermal losses and allows lower wattage designs to outperform bulkier alternatives.
Heater Lifespan
This is where many people trip up. Lifespan and watt density have an inverse relationship more often than not. A higher watt density means more intense, localized heat. That extra intensity forces the heating element to work harder and stresses the silicone rubber material more. Over time, that stress leads to premature failure.
An improperly matched high watt density does more than just wear out the heater-it also raises surface temperatures excessively, which can cause polymer degradation when heating plastics and even create safety hazards in some setups.
Industry data shows that a well-designed silicone rubber heater used under proper conditions can last for tens of thousands of hours. But push it to its limits with aggressive watt density and frequent cycling, and that lifespan shrinks dramatically.
What Is the Safe Limit for Watt Density?
This is a question that comes up a lot, and the answer depends heavily on how the heater is installed.
Here is what UL standards generally recognize for silicone rubber heaters:
- 5 W/in² - acceptable when the heater is suspended in still air
- 10 W/in² - acceptable when attached with factory-supplied pressure-sensitive adhesive
- 15 W/in² - acceptable when the heater is directly vulcanized to a metal part
- Up to 40 W/in² - possible but requires proper temperature control and the right conditions
The big takeaway here is that a metal surface acts like a heat sink, drawing heat away from the heater and allowing for higher watt densities. Attaching a heater to plastic or an insulated surface, on the other hand, requires much lower watt density to avoid scorching.
How Different Industries Choose Watt Density
3D Printing
If you run a 3D printer with a silicone heated bed, you are probably looking at power densities in the range of 0.1 to 1.5 W/cm² (about 0.65 to 9.7 W/in²). The sweet spot depends on your bed size and desired print bed temperature. Too low, and your printer struggles to hit temperature. Too high, and you risk uneven bed temperatures that ruin print adhesion.
Battery Heating (EVs and Energy Storage)
When it comes to lithium-ion batteries, temperature matters-a lot. These batteries typically perform best between 10°C and 45°C (50°F to 113°F). For battery heating applications, moderate watt density in the range of 2 to 10 W/in² is generally recommended. This range provides enough power to warm the battery evenly without creating hot spots that could damage sensitive cells or, worse, trigger thermal runaway.
Food Warming Equipment
This is a case where less is actually more. Fast-food warming tables, to give you one example, operate with remarkably low watt densities-sometimes as low as 0.1 to 0.3 W/in² to maintain hamburgers at around 140°F. The silicone heater's low mass and large surface area actually make it more efficient at these low densities than you might expect.
That is the beauty of silicone heater pads. Because they are thin and can be bonded directly to the surface, they transfer heat uniformly without needing high power concentrations.
Industrial Extrusion and Molding
Plastic processing equipment often requires much higher watt densities to maintain barrel and nozzle temperatures. According to industry guidelines, plastic barrels typically run at medium-high watt densities of roughly 10 to 25 W/in², while mold surfaces can work effectively with as low as 5 to 15 W/in². Nozzles, however, demand some of the highest watt densities-upwards of 20 to 35 W/in²-because they have low thermal mass and need fast, precise temperature control.
Medical Devices
In medical applications-think IV bag warmers, patient warming blankets, or blood analyzers-reliability is non-negotiable. Silicone heaters here often operate at moderate watt densities, typically 5 to 10 W/in², depending on whether they are bonded to metal or free-hanging.
Composite Curing
For high-performance composite curing in aerospace or automotive manufacturing, precision is everything. Etched foil silicone heaters can achieve temperature uniformity of approximately ±10°F (±5.5°C) across the entire curing surface, which is essential for producing void-free, structurally sound parts.
A Practical Framework for Selection
Let me walk you through a simple way to think about choosing the right watt density for your application.
Step 1: Know Your Surface
Evaluate what you are actually heating. Is it metal? Plastic? An insulated surface? Metal dissipates heat well and can handle higher watt densities-sometimes up to 15 W/in² or more. Plastics and composites, however, require lower densities to prevent degradation. An air gap is the worst-case scenario-it traps heat around the element and causes overheating.
Step 2: Match Your Process Needs
Gentle warming applications like freeze protection or condensation prevention do not need aggressive watt densities. BriskHeat, for example, offers a 2.5 W/in² density for general-purpose metal heating and an even lower 1.25 W/in² density for plastic surfaces. For rapid heat-up or high-temperature processes, you will need higher densities, but always stay within safe limits.
Step 3: Think About Lifespan
This is where your selection really matters. If you want your heater to last, avoid pushing it to the maximum watt density your application can theoretically handle. Running a heater at full tilt continuously-especially if you are cycling it on and off frequently-accelerates wear from thermal expansion and contraction.
Step 4: Add a Safety Margin
Always size your heater system slightly above your calculated requirement. Most engineers add a safety factor of around 20% to compensate for unknown variables like heat loss or environmental conditions. Some large systems even use safety factors up to 35%.
Step 5: Use Temperature Control
Here is a piece of advice you will thank me for later: never run a silicone heater without some form of temperature control. A simple thermostat works, but a PID controller is even better. Good temperature control prevents overshoot, reduces thermal cycling stress, and extends heater life significantly. Without it, you are essentially driving a car with your foot permanently on the accelerator.
Final Thoughts
Watt density is not just a number on a spec sheet. It shapes how your silicone heater pad performs every single day-how evenly it heats, how quickly it responds, how much energy it uses, and how long it stays in service.
The key takeaway? There is no single "right" watt density. The right choice depends entirely on your specific application, mounting conditions, temperature requirements, and how long you need the heater to last.
